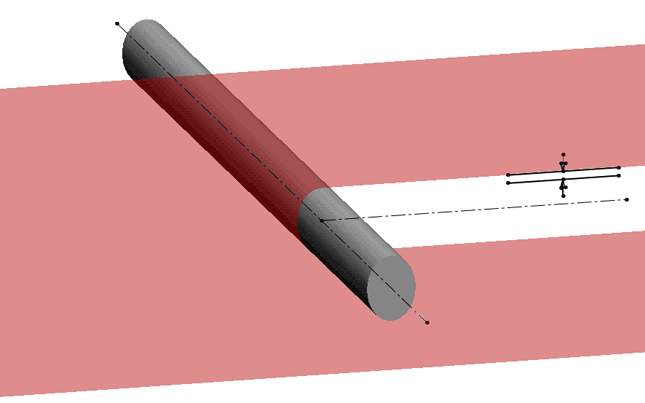

Single-axis, total indicated runout (TIR), also known as total indicator reading or full indicator movement (FIM)—measure the movement of one edge of a part (top or bottom) as it rotates.  The part must rotate at least 360 degrees.

To view other measurements, click on the selections on the left.

These measurement methods can be performed using Total Vu™ software and any of the micrometers that LaserLinc supports.
