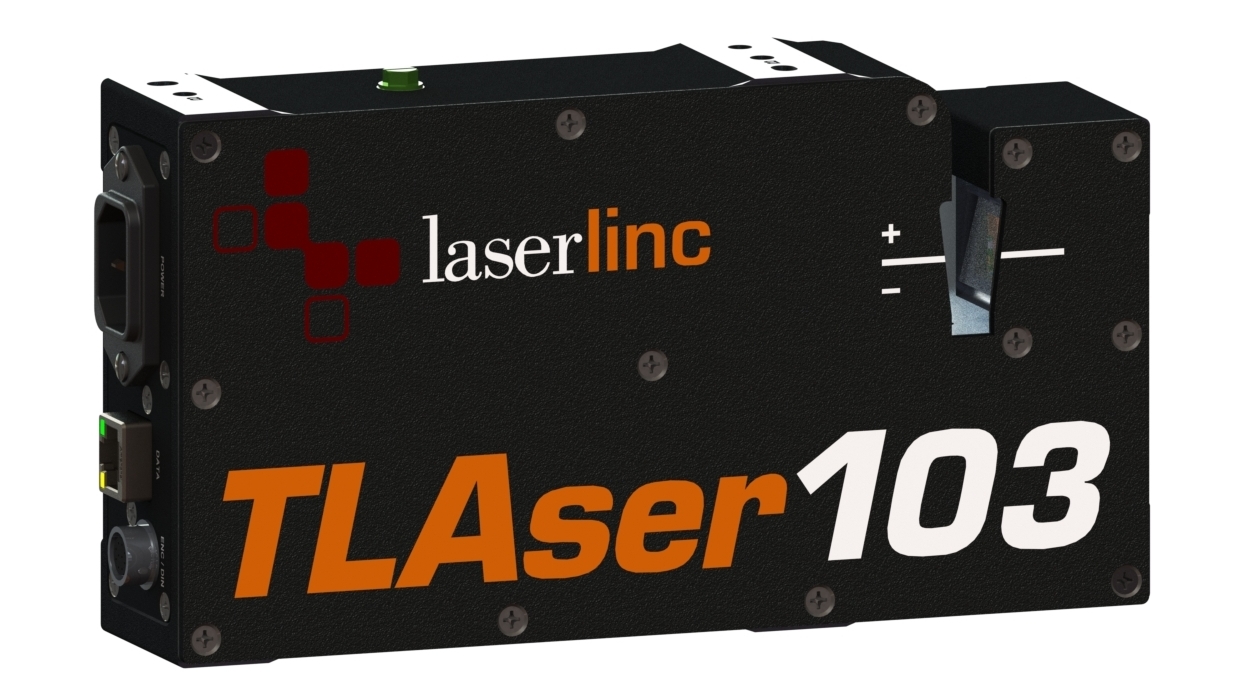

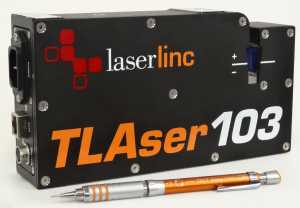

TLAser103™ Specifications and Drawings
TLAser103 Drawings
Overall Mounting Dimensions (.pdf) - 144kb
Executable SolidWorks® e-drawing: Executable (.exe) - 6.24mb
Measurement Range
|
.0006˝ – .086˝ [.015mm [15μm] – 2.2mm]
|
Axes of measurement
|
1 [see Single-Axis Laser Micrometers]
|
Gate Size
|
.114˝ [2.9mm]
|
Measurements per second1
|
1200
2400 (optional) |
Resolution
|
.0000001˝ [.0025µm]
|
Repeatability2
|
|
Single Scan
|
±.00005˝ [±1.25µm]
|
Two Second
|
±.000001˝ [±.025µm]
|
Positional Error3
|
±.00001˝ [±.25µm]
|
Approx. Dimensions
[H x W x D] |
4.345˝ x 8.24˝ x 1.862˝
[110mm x 209mm x 47mm] |
Light Source
|
Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW
|
Approx. Weight
|
3.5 lbs [1.59kg]
|
Power requirements
|
100-240 VAC 50/60 Hz 50 W max.
|
Cabling
|
Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m]
Custom lengths, connectors, cable construction, etc., quoted on request |
Gauge Interface Options
|
|
Warranty
|
Four years, parts and labor. Read more here
|
1Measurement rate is the number of times per second the measurement field is scanned. 2Repeatability applies to parts 0.08" [2.04mm] and under. 3Positional error applies to center 0.079" [2.03mm]. ®SolidWorks is a registered trademark of Dassault Systèmes SOLIDWORKS Corp. |
|
