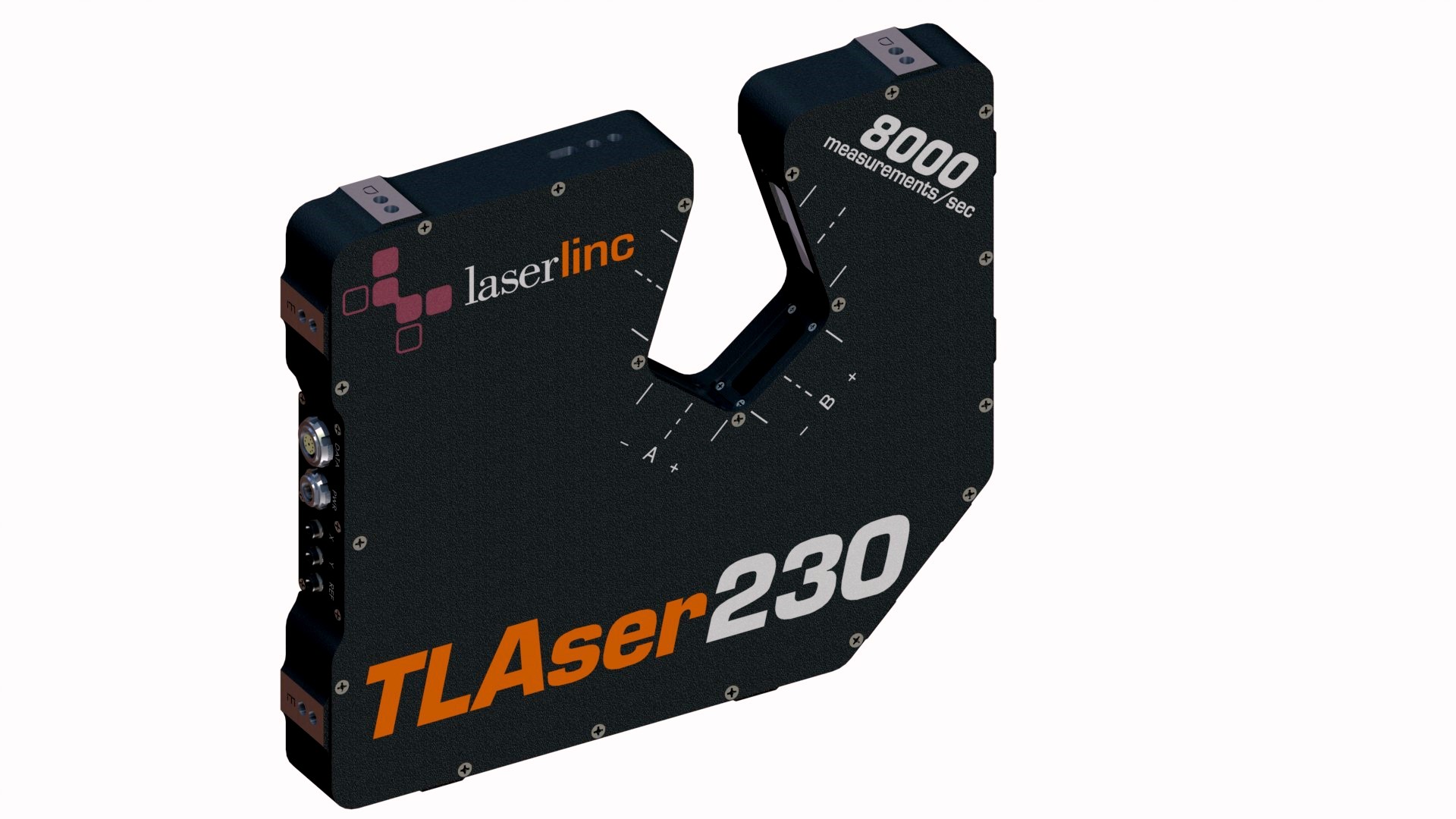

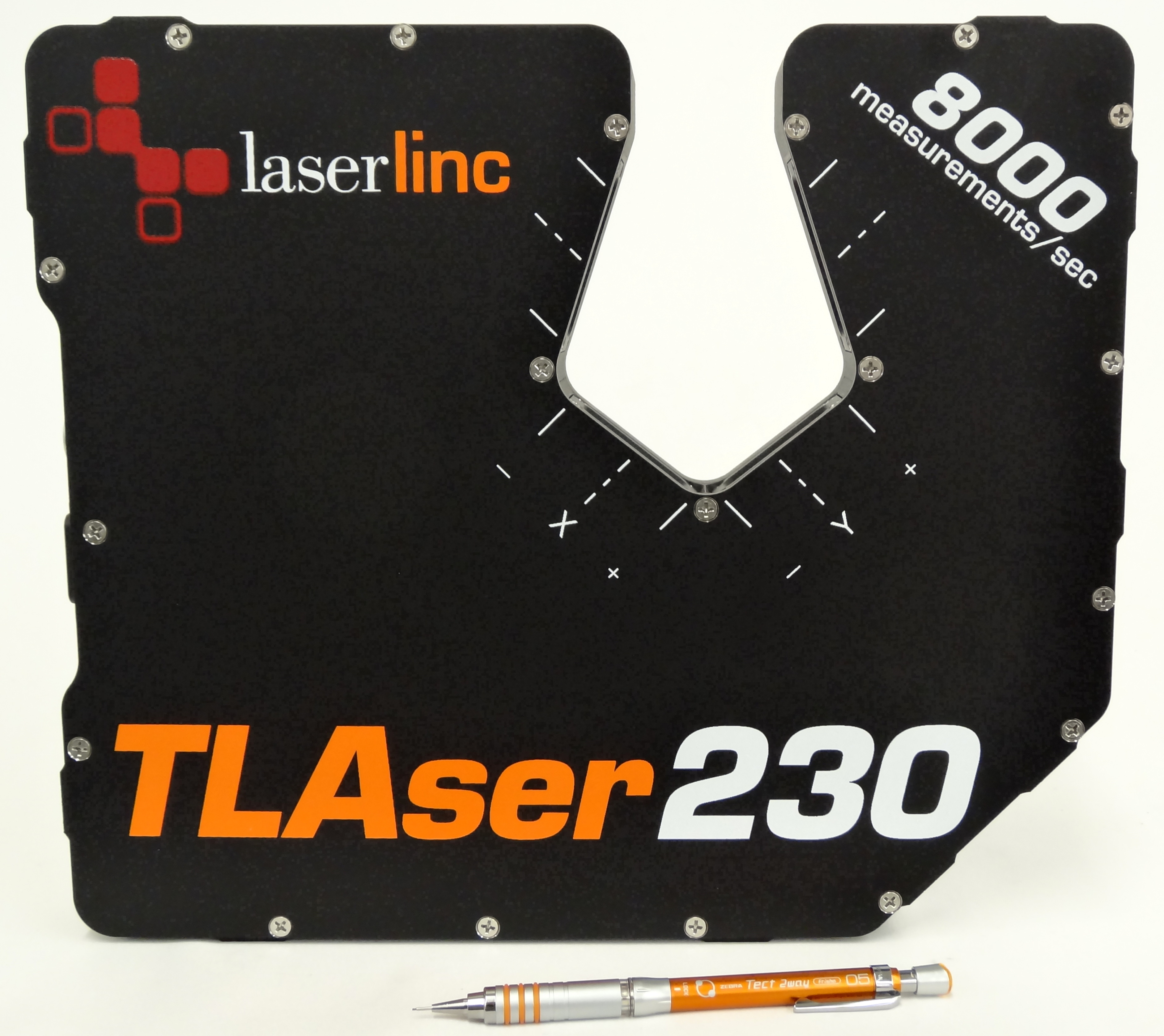

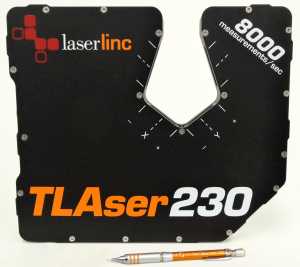

TLAser230™ Specifications and Drawings
TLAser230 Drawings
Overall Mounting Dimensions [.pdf] - 153kb
Executable SolidWorks® e-drawing: Executable [.exe] - 7.1mb
Measurement Range
|
0.007" – 1.15" [0.178mm – 29.2mm]
|
Axes of measurement
|
2 [see Dual-Axis Laser Micrometers]
|
Gate Size
|
1.18" [30mm]
|
Measurements per second1
|
3200 [1600 per axis]
8000 [4000 per axis] (optional) |
Resolution
|
.000001" [.025µm]
|
Repeatability2
|
|
Single Scan
|
±.0004" [±10µm]
|
Two Second
|
±.000005" [±.13µm]
|
Positional Error3
|
±.0001" [±2.5µm]
|
Approx. Dimensions
[H x W x D] |
10.75" x 13.25" x 2.15" [273mm x 337mm x 55mm]
|
Light Source
|
Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW
|
Approx. Weight
|
20 lbs [9kg]
|
Power requirements
|
100-240 VAC 50/60 Hz 50 W max.
|
Cabling
|
Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m]
Custom lengths, connectors, cable construction, etc., quoted on request |
Gauge Interface Options
|
|
Warranty
|
Four years, parts and labor. Read more here
|
1Measurement rate is the number of times per second each measurement field [or axis] is scanned [shown in square brackets]. The value specified is the aggregate measurement rate for all axes. 2Repeatability applies to parts 1.0" [25.4mm] and under. 3Positional error applies to center 1.0" [25.4mm]. ®SolidWorks is a registered trademark of Dassault Systèmes SOLIDWORKS Corp. |
|
